Visual Template Editor (WYSIWYG)

The Visual Template Editor lets you create PDF templates without writing any HTML or CSS. It's a rich text editor where you can format your document visually and insert dynamic variables.

Getting started​

  1. Go to Manage Templates > New PDF Template
  2. Select Create PDF with Visual Editor, choose a starter template, and click Create

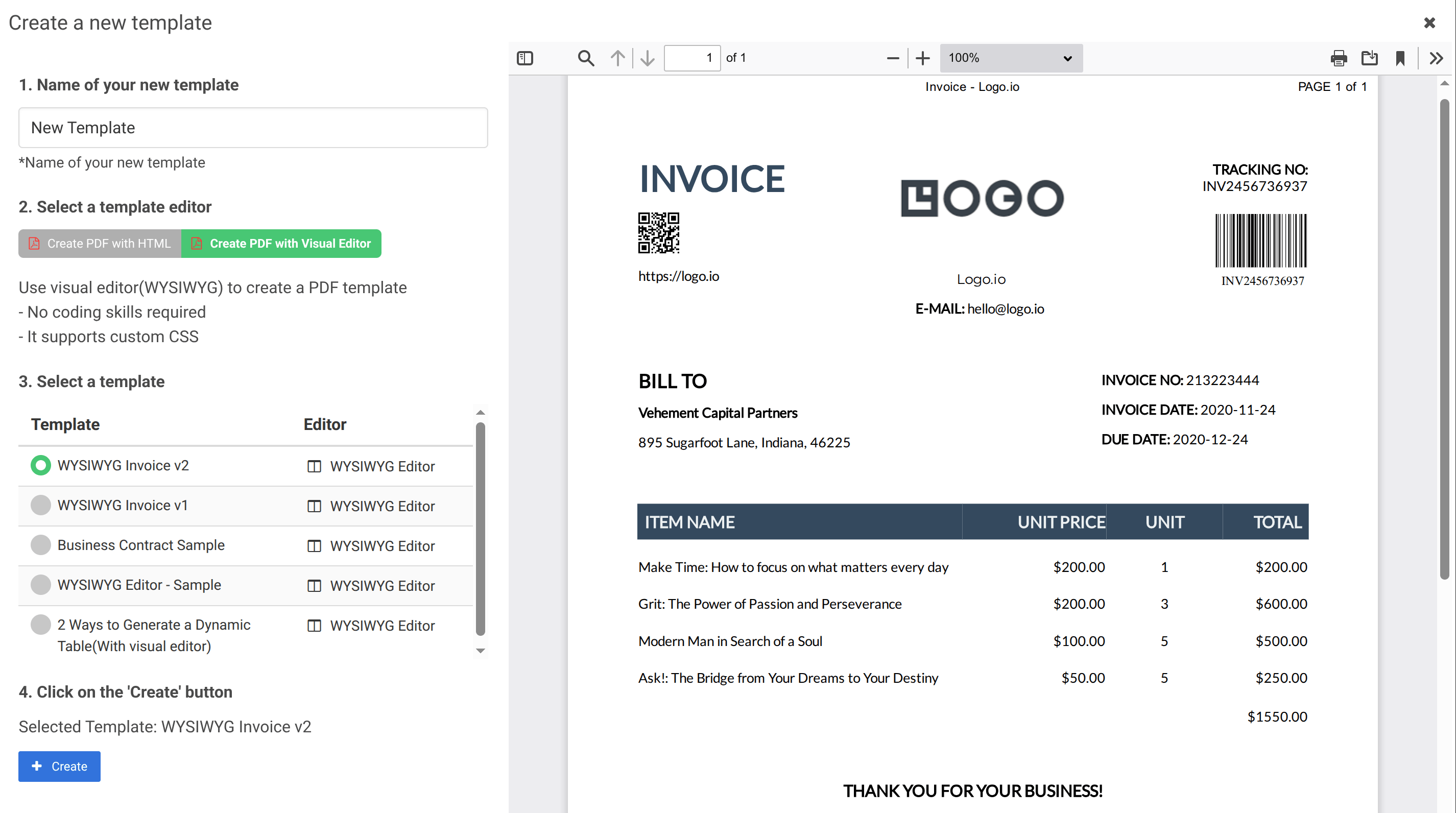

Create a new PDF template — choose between the HTML Editor and Visual Editor, then pick a starter template

  1. Back on the Manage Templates page, click Launch Editor on your new template

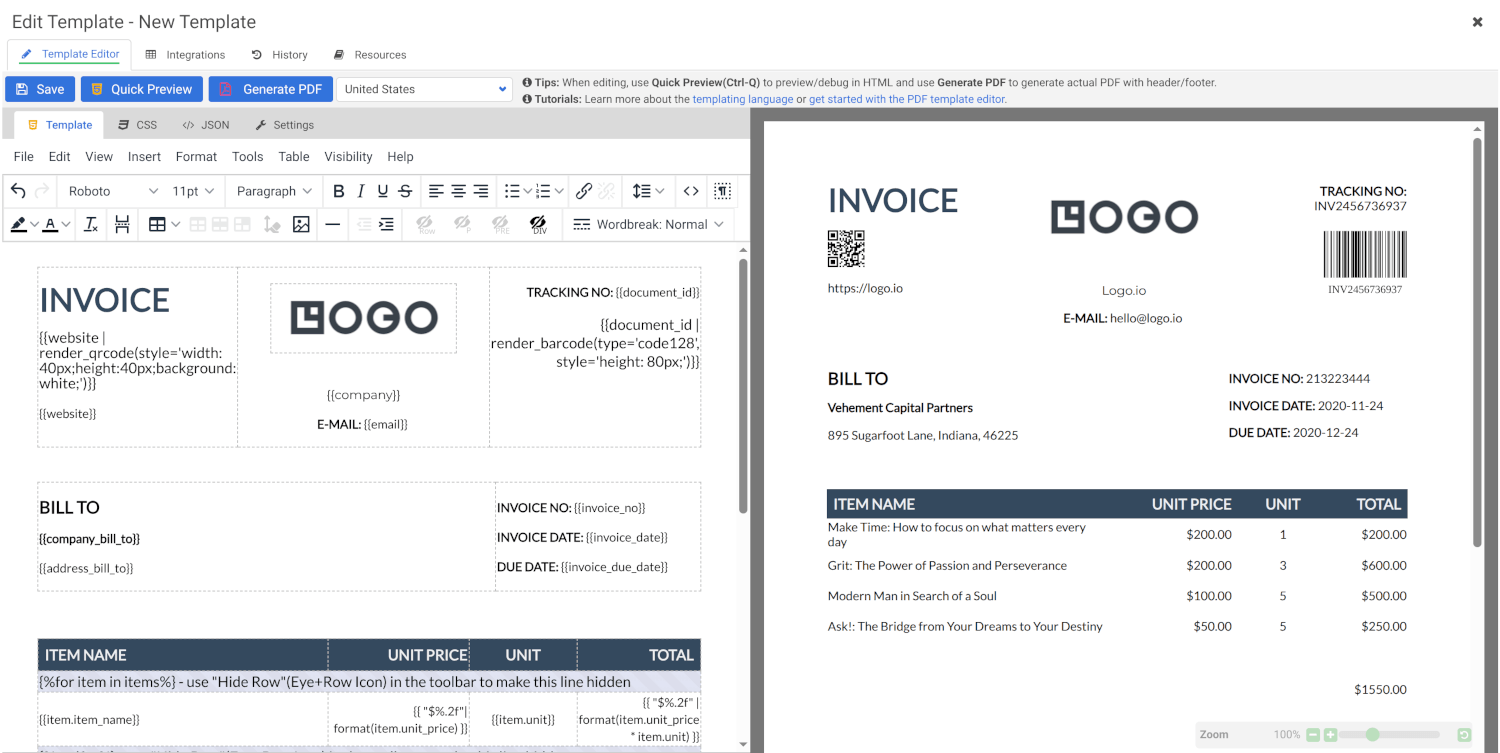

Launch the Visual Editor to edit the template

  1. The editor has four tabs:
    • Template — the rich text editor where you write your content and insert dynamic Jinja2 variables. At generation time, the engine merges your template with the JSON data you provide via the API.
    • CSS — add styles and include external fonts, JavaScript libraries, and other resources.
    • Sample JSON — provide test data for previewing your template.
    • Settings — configure paper size, orientation, margins, and custom header/footer HTML (see Headers and Footers).

What you can do​

The visual editor works like a word processor:

  • Format text — bold, italic, underline, font size, color, alignment
  • Insert tables — create structured data layouts
  • Add images — embed logos, photos, and graphics
  • Use variables — insert {{variable_name}} placeholders that get replaced with JSON data
  • Structure content — headings, paragraphs, lists, horizontal rules

Using dynamic variables​

Even in the visual editor, you can use Jinja2 syntax. Just type the variable placeholder directly:

Dear {{customer_name}},

Your order #{{order_number}} has been confirmed.
Total: {{total_amount}}

The visual editor supports:

  • Simple variable substitution: {{variable}}
  • Loops: {% for item in items %}...{% endfor %}
  • Conditions: {% if condition %}...{% endif %}

When to use it​

The visual editor is a great fit when:

  • You need to create simple, text-heavy documents
  • You or your team aren't comfortable with HTML/CSS
  • You want a quick way to prototype a document layout
  • The document doesn't require complex styling or custom layouts

For more complex needs, consider the Code/HTML Template Editor.
