How to Set Custom Size and Margin per PDF Page

Every page of a PDF normally uses the Paper Size, Orientation and Margins from the template's Settings tab. When one document needs more than one format - a landscape page for a wide table, a cover page with no margins, a receipt-width page inside an A4 report - use the CSS @page at-rule instead.

Requirements

An HTML template with PDF output, on Rendering Engine version 153. The visual (WYSIWYG) editor is not supported.

Step 1: Enable the setting​

In the Settings tab, under Rendering Engine: set Version to 153.

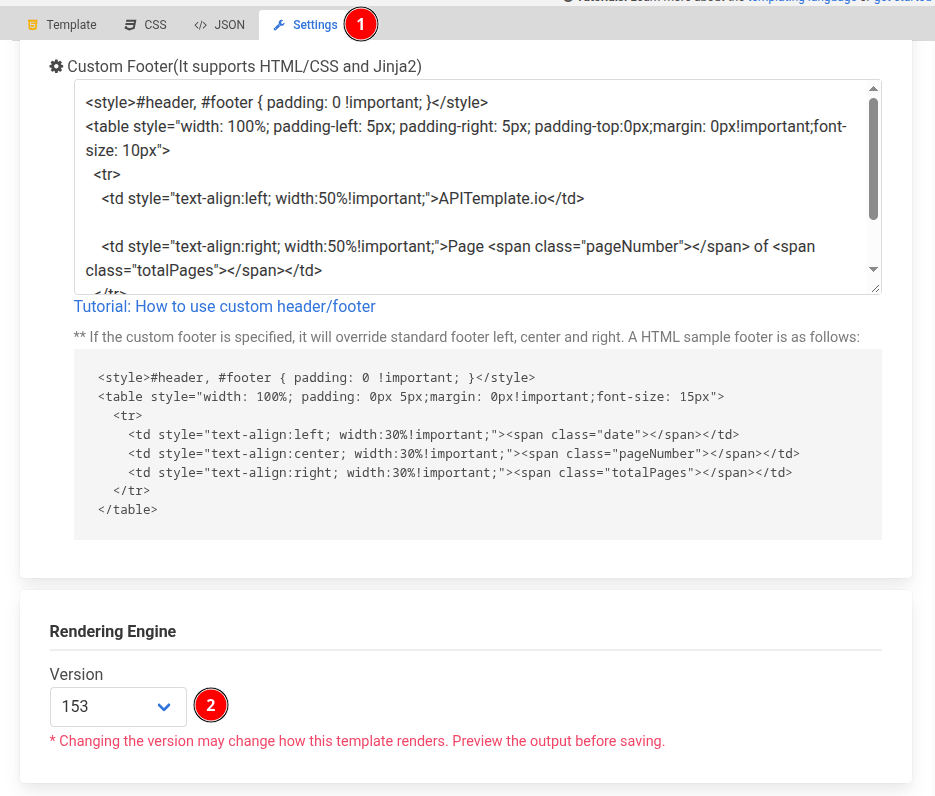

Set Rendering Engine to 153

Tick Prefer CSS @page at-rule over settings above, then Save.

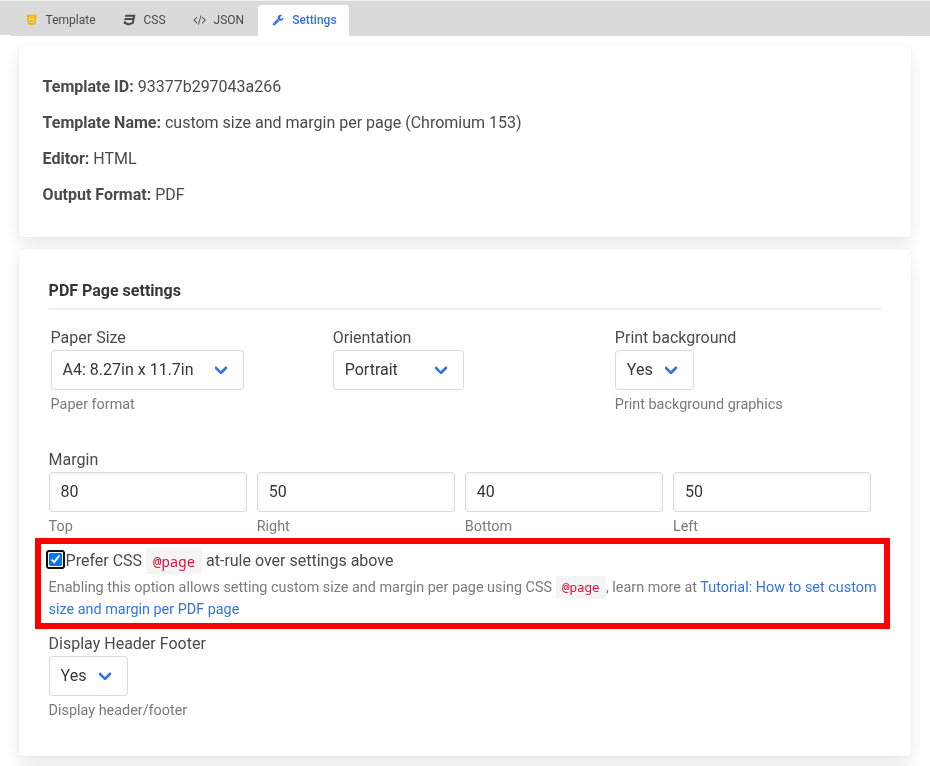

Tick Prefer CSS @page at-rule over settings above

Using the REST API? See API usage below.

Where the CSS goes

The CSS tab holds your document's <head> markup, so it already contains a <style> block - put the @page rules inside it. The API's css field works the same way, so wrap your CSS in <style>...</style> there too.

Step 2: One size for the whole document​

An @page rule without a name applies to every page.

CSS tab

@page {
  size: 8.5in 9in; /* width height */
  margin: 1in 0.5in; /* top/bottom  left/right */
}

Every page is now 8.5in x 9in, even if the Settings tab says A4.

Step 3: A different size for some pages​

Give the rule a named page, then point an element at it with the page property.

CSS tab

@page {
  size: A4 portrait;
  margin: 20mm;
}

/* Used by any element with page: wide */
@page wide {
  size: A4 landscape;
  margin: 10mm;
}

.wide {
  /* print these on the "wide" page */
  page: wide;
}

HTML tab

<section><h1>Portrait page</h1></section>
<section class="wide"><h1>Landscape page for a wide table</h1></section>
<section><h1>Back to portrait</h1></section>

A new page starts automatically wherever the page name changes, so you do not need page-break-before at the boundary. page works on block elements (section, div, table) only - setting it on a <span> does nothing.

Choosing a size​

@page {
  size: A4; /* paper keyword */
}
@page {
  size: A4 landscape; /* keyword + orientation */
}
@page {
  size: 80mm 200mm; /* width height */
}
  • Keywords: A5, A4, A3, B5, B4, JIS-B5, JIS-B4, letter, legal, ledger - see MDN: @page/size.
  • Lengths: any absolute CSS unit - in, cm, mm, pt, pc, px - see MDN: <length>.
  • Orientation belongs in the CSS. A size without the landscape keyword is portrait, and it overrides the Orientation setting.

Which setting wins?​

PriorityDeclared inApplies to
1 (highest)@page name { ... }, used through page: namethe pages of that element
2@page { ... } (no name)every page not covered by a named rule
3 (lowest)Settings tab: Paper Size, Orientation, Marginsanything the CSS leaves unspecified

They combine per property: set margin-top only, and the size and the other three margins still come from the Settings tab.

Keep every @page rule in the CSS tab

The browser applies @page rules one stylesheet at a time, and a later stylesheet wins even over a named rule in an earlier one. A <style> block in the HTML tab - or inject_css - counts as a later stylesheet, so an @page { size: A4 } there silently switches off every named size declared in the CSS tab. Keep the rules together, unnamed rule first.

Examples​

Each example is complete: paste the CSS block inside the <style> block in the CSS tab, and the HTML block into the HTML tab.

A full-bleed cover page​

A named page with margin: 0 lets the background reach the paper edge. Select Yes for Print Background in the Settings tab so the colour prints.

CSS tab

/* Without this, the full-height cover spills onto a blank second page. */
html,
body {
  margin: 0;
}

@page {
  size: A4;
  margin: 20mm;
}

@page cover {
  size: A4;
  margin: 0;
}

.cover {
  page: cover;
  box-sizing: border-box;
  height: 100vh; /* exactly one page */
  padding: 20mm; /* keeps the text off the paper edge */
  background: #1e3a5f;
  color: white;
}

HTML tab

<section class="cover">
  <h1>Annual Report 2026</h1>
</section>

<section>
  <h1>Contents</h1>
  <p>A normal A4 page with 20mm margins.</p>
</section>

Result: two A4 pages, the first one filled edge to edge with the background colour.

A receipt-width page inside an A4 document​

A named page can use any size, not just a paper keyword.

CSS tab

@page {
  size: A4;
  margin: 20mm;
}

@page receipt {
  size: 80mm 200mm;
  margin: 5mm;
}

.receipt {
  page: receipt;
  font-family: monospace;
}

HTML tab

<section>
  <h1>Order confirmation</h1>
  <p>Thank you for your order.</p>
</section>

<section class="receipt">
  <p>Item A ....... 12.00</p>
  <p>Total ........ 12.00</p>
</section>

Result: an A4 page, then an 80mm x 200mm page.

Extra space on the first page only​

The :first pseudo-class styles the first page without naming it, which is handy for leaving room for a printed letterhead.

CSS tab

@page {
  size: A4;
  margin: 20mm;
}

@page :first {
  margin-top: 80mm;
}

HTML tab

<p>The first page starts lower, leaving room for a printed letterhead.</p>
<p style="page-break-before: always">The second page uses the normal 20mm top margin.</p>

Result: two A4 pages, the first with an 80mm top margin and the second with 20mm.

Only change the margins​

@page does not have to set a size. This keeps the Paper Size from the Settings tab and overrides the top margin alone.

CSS tab

@page {
  margin-top: 4in;
}

HTML tab

<p>The Paper Size still comes from the Settings tab.</p>

Result: one page in the Settings-tab size, with the text starting 4in down. The other three margins still come from the Settings tab.

Good to know​

  • @page margins are applied whether or not the checkbox is ticked. The checkbox is what makes size take effect.
  • Headers and footers are printed inside the page margin, so a page with margin: 0 shows neither. See Headers and Footers.
  • Do not combine this with the "single continuous page" mode (custom paper size with height 0): a CSS @page size overrides the measured height.
  • @page controls size and margins only. Page breaks are still page-break-before, page-break-after and page-break-inside - see Advanced PDF Topics.

API usage​

Set rendering_engine_version to "153" and preferCSSPageSize to true in the settings object of create-pdf-from-html or any other PDF endpoint. For a saved template both come from its Settings tab instead.

curl -X POST "https://rest.apitemplate.io/v2/create-pdf-from-html" \
  -H "X-API-KEY: YOUR_API_KEY" \
  -H "Content-Type: application/json" \
  -d '{
    "body": "<section><h1>Portrait</h1></section><section class=\"wide\"><h1>Landscape</h1></section>",
    "css": "<style>@page { size: A4; margin: 20mm; } @page wide { size: A4 landscape; margin: 10mm; } .wide { page: wide; }</style>",
    "settings": {
      "rendering_engine_version": "153",
      "preferCSSPageSize": true,
      "paper_size": "A4",
      "orientation": "1"
    }
  }'

Troubleshooting​

SymptomFix
Every page still uses the Settings-tab sizeSet Version to 153, tick the checkbox, save
The CSS is printed as text in the PDFWrap the rules in <style>...</style>
A named page has no effectPut page: on a block element, not a <span>
A named page prints at the default sizeMove every @page rule into the CSS tab, unnamed rule first
The page is portrait although Orientation is LandscapeWrite size: A4 landscape
Changing Margins in the Settings tab does nothingEdit the @page margin instead
A header or footer is missing on one pageGive that @page rule a top/bottom margin
A full-height element adds a blank pageSet html, body { margin: 0; }
