Bubble.io Integration

Bubble.io is a no-code app development framework that lets you build web and mobile apps without writing any code. With the official APITemplate.io plugin for Bubble.io, you can generate PDFs and images directly from your Bubble app data — no coding required.

With this integration you can:

  • Generate PDFs (invoices, reports, certificates) from your Bubble app data
  • Generate images (social media graphics, product images) dynamically
  • Email the results to users by combining the plugin with Bubble's email action
  • Generate PDFs asynchronously (since plugin v1.6.1) to handle large documents that would otherwise hit Bubble's 30-second request timeout — APITemplate.io renders the file in the background and calls a webhook in your app when it's ready
tip

For the full step-by-step walkthrough with additional details, see the blog post: How to generate PDF documents and Images with Bubble.io

Prerequisites​

You need accounts on both services:

  1. Bubble.io — sign up at bubble.io
  2. APITemplate.io — sign up at app.apitemplate.io

Step-by-step guide​

Step 1 — Set up APITemplate.io​

Obtain your API key​

Log in to APITemplate.io, go to the API Integration tab, and copy your API key.

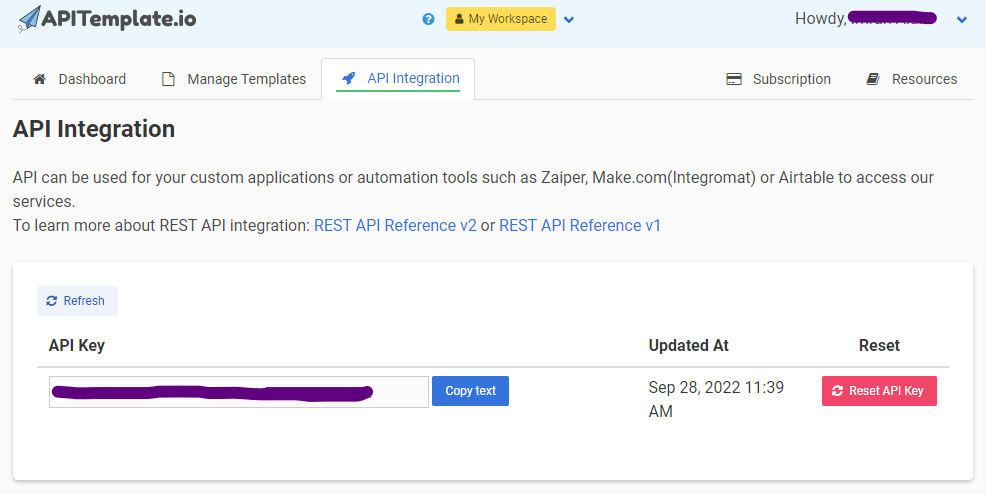

Copy your API key from the API Integration tab

Create a PDF template​

  1. Navigate to Manage Templates
  2. Click New PDF Template
  3. Give your template a name and select a base template (e.g. Sample Invoice Template 1)
  4. Click Create
  5. Copy the template ID from the Manage Templates page

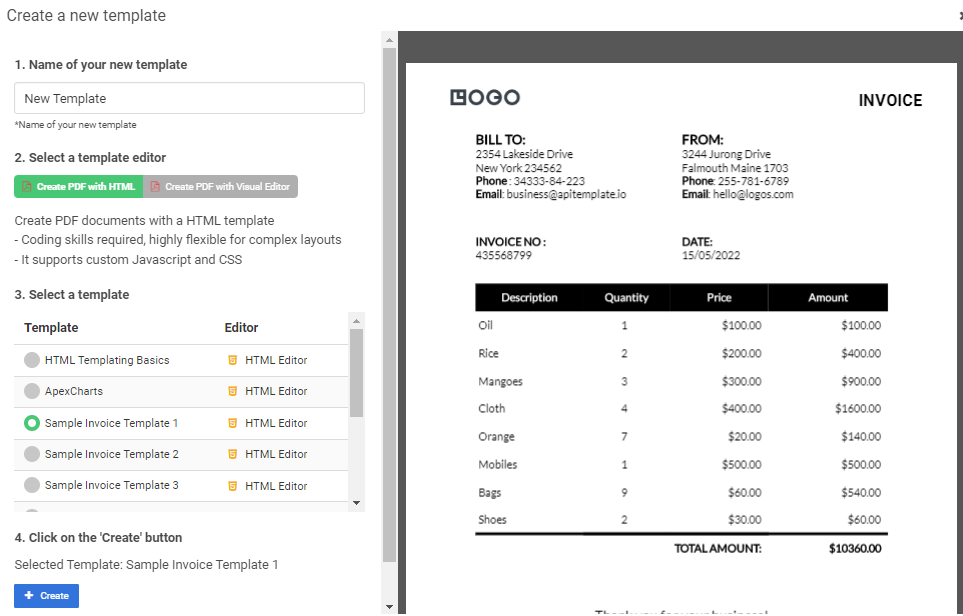

Creating a PDF template

Create an image template​

  1. Click New Image Template and give it a name
  2. Select a base template (e.g. Instagram)
  3. Click Create
  4. Copy the template ID from the Manage Templates page

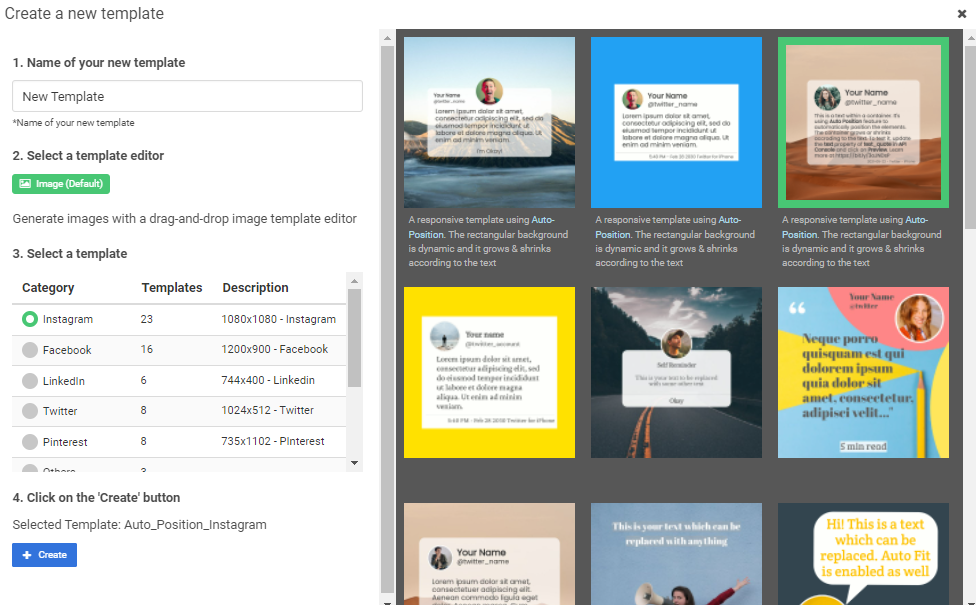

Creating an image template

Step 2 — Build your Bubble.io app​

Design the app layout​

Create a page with two sections — one for PDF generation and one for image generation. Each section needs:

  • A Multiline TextField for the user to enter data (JSON or key-value pairs)
  • An Input Field for the recipient email address
  • A Button to trigger generation

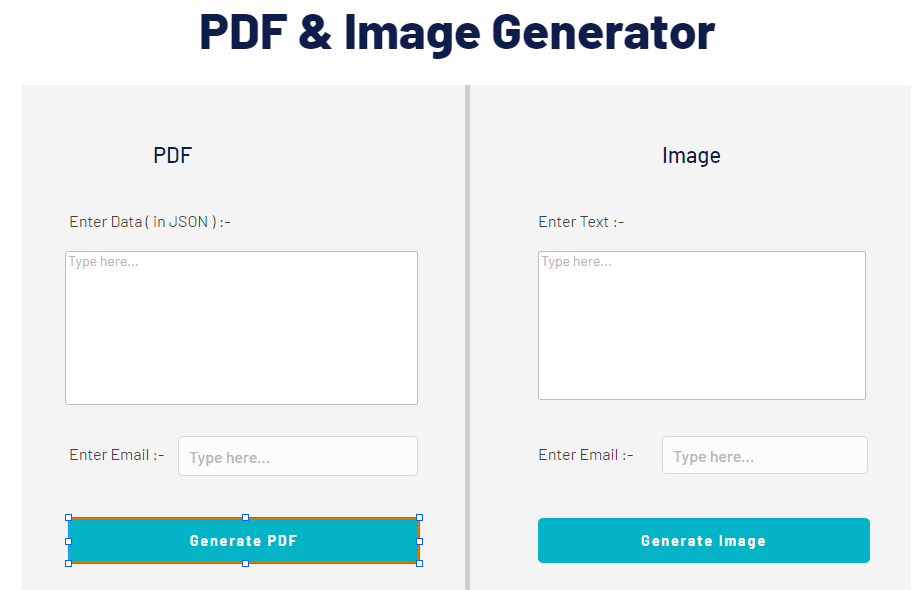

App design with PDF and image sections

Install the APITemplate.io plugin​

  1. In your Bubble editor, go to Plugins → Add plugins
  2. Search for APITemplate.io
  3. Install the APITemplate.io - PDF & Image API plugin
  4. Go to the API Keys section on the plugin page and paste your API key

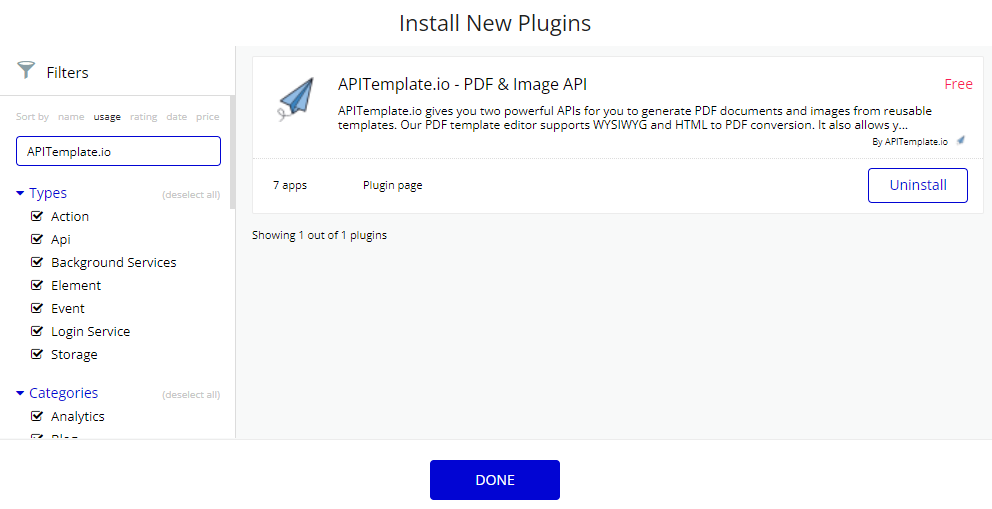

Installing the APITemplate.io plugin

Step 3 — Generate PDFs​

Set up a workflow on the Generate PDF button:

  1. Double-click the button and select Start/Edit Workflow
  2. Click Click here to add an action → go to Plugins → select Generate PDF
  3. Configure the action:
FieldDescription
Template IDThe ID of your PDF template (from Manage Templates)
JSON DataMap to your Multiline TextField's value
ExpirationNumber of days the generated PDF remains accessible
RegionYour APITemplate.io region
FilenameDesired filename for the PDF
Export TypeSelect URL to receive a download link

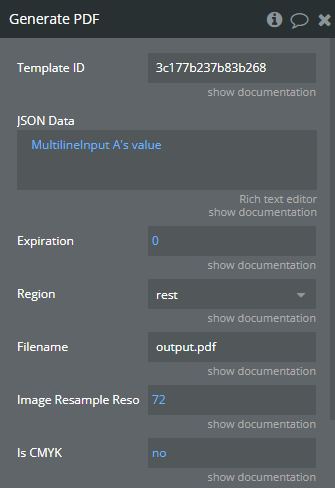

Configure the Generate PDF action

  1. Add a second action — Send Email — and map the body to the Download URL from the Generate PDF result

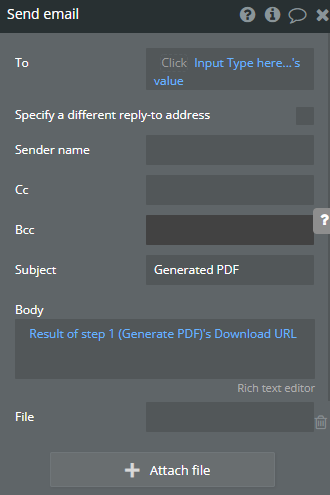

Send email with the generated PDF link

Result​

When a user clicks Generate PDF, the workflow creates a PDF and emails the download link:

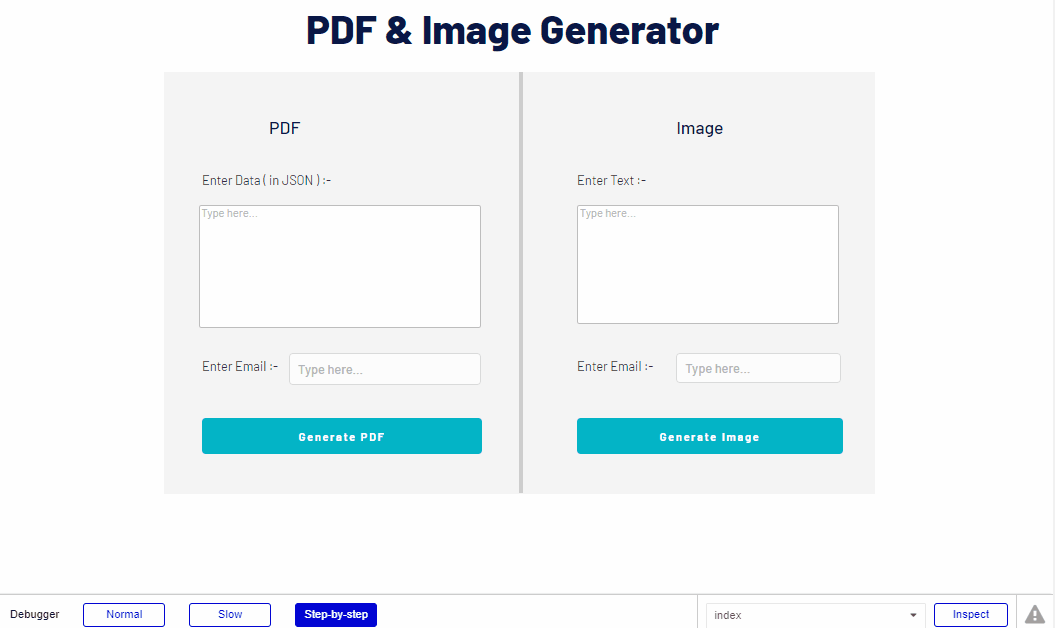

PDF generation demo

Step 4 — Generate images​

Set up a workflow on the Generate Image button following the same pattern:

  1. Double-click the button and select Start/Edit Workflow
  2. Click Click here to add an action → go to Plugins → select Generate Image
  3. Configure the action:
FieldDescription
Template IDThe ID of your image template
Payload TypeChoose JSON or Dictionary (key-value pairs)
PayloadMap keys from your template to values from the input field
ExpirationNumber of days the generated image remains accessible
RegionYour APITemplate.io region

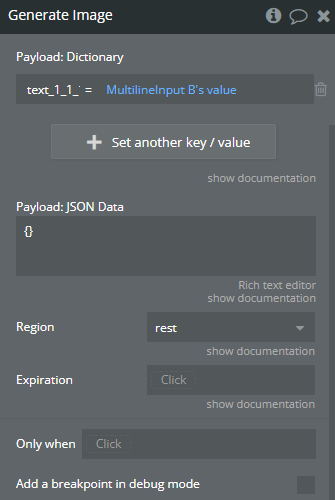

Configure the Generate Image action

  1. Add a Send Email action and map the body to the Download URL from the Generate Image result

Result​

When a user clicks Generate Image, the workflow creates an image and emails the download link:

Image generation demo

Asynchronous PDF generation​

info

Asynchronous PDF generation is supported in the APITemplate.io Bubble plugin since v1.6.1.

Why you need async​

Bubble caps every API request at around 30 seconds. If a PDF takes longer than that to render — for example a large document with many pages, heavy images, or embedded charts — the synchronous Generate PDF call will time out before the file is ready.

Asynchronous generation avoids this: the plugin returns immediately, APITemplate.io renders the PDF in the background, and when it's done it calls a webhook in your Bubble app with the result.

Configure the async action​

On your Generate PDF action, set the following options:

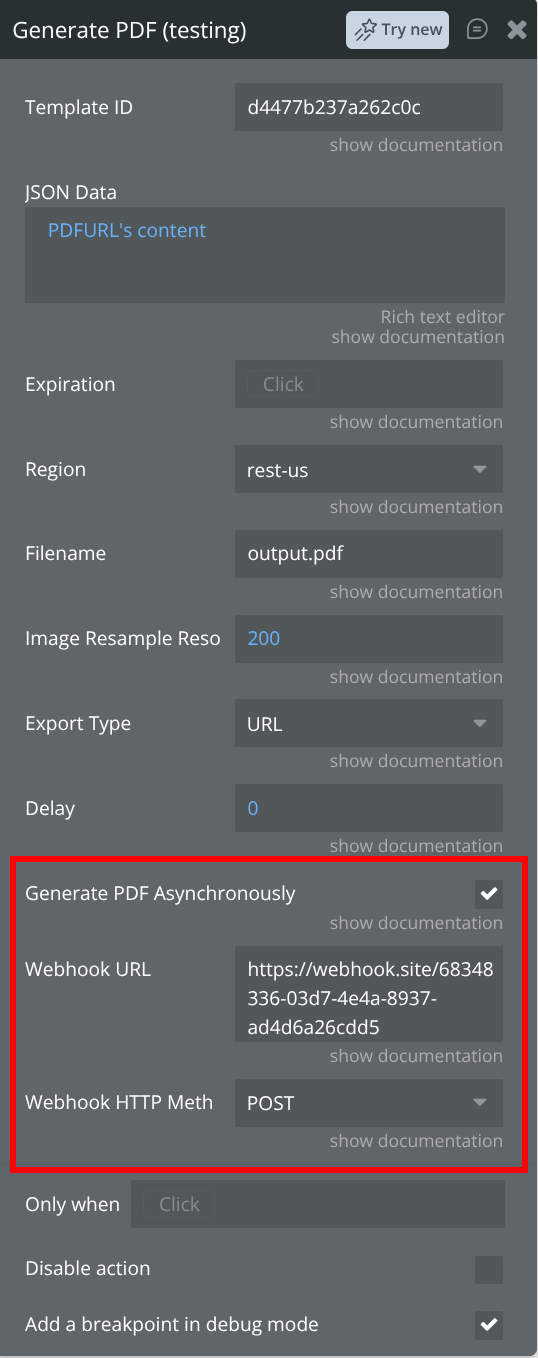

Generate PDF asynchronously options in the Bubble plugin

FieldDescription
Generate PDF AsynchronouslyCheck this box to enable async generation
Export TypeSelect URL so the callback returns a download link
Webhook URLThe URL APITemplate.io calls once the PDF is ready (point this at a Bubble backend API workflow — see below)
Webhook HTTP MethodThe method used for the callback, typically POST

How to setup Bubble backend API workflow​

The Webhook URL should point to a Bubble backend API workflow (under Settings → API → enable workflow API and backend workflows). Create a workflow with a public endpoint and define the callback fields below as parameters on that workflow, so they're available downstream.

Per the Create PDF API reference, once the PDF is generated APITemplate.io calls your Webhook URL (using the configured Webhook HTTP Method) and passes these parameters:

ParameterDescription
primary_urlThe URL to the generated PDF document — use this to save or email the file
transaction_refThe unique transaction reference number
statusThe transaction result, either success or error
messageA status message with additional context
html_url(Optional) URL to the rendered HTML page, only included when output_html is set to 1

A sample callback looks like:

https://your-app.bubbleapps.io/api/1.1/wf/apitemplate_webhook?primary_url=https%3A%2F%2Fpub-cdn.apitemplate.io%2F...%2Ffile.pdf&transaction_ref=b692183d-46d7-3213-891a-460a5814ad3f&status=success&message=...
tip

APITemplate.io retries the webhook call up to 3 times before giving up, so make sure your backend workflow responds quickly.

When the callback arrives, your workflow can then:

  • Save primary_url to your Bubble database against the matching transaction_ref
  • Email the download link to the user
  • Update a status field so your UI knows the PDF is ready

Watch the walkthrough below to see how to set up a Bubble backend workflow to receive the webhook:

Example use cases​

  • Invoicing app — user fills out invoice details in a form, workflow generates a PDF invoice, download URL is saved and displayed
  • Certificate generator — form submission triggers a personalized certificate PDF
  • Social media tool — user enters product data, workflow generates branded images for social media
  • Report builder — aggregate data in Bubble's database and generate a PDF report on demand

Tips​

  • Use the Dictionary payload type for image generation — it's simpler for flat key-value data
  • Use JSON payload type for PDF templates that need hierarchical or complex data
  • Combine the plugin with Bubble's built-in Send Email action to deliver generated files automatically
  • Store the download_url in your Bubble database so users can access their generated files later
